ESP32 Marauder with GPS Integration

"The Marauder is a portable penetration testing tool created for Wi-Fi and Bluetooth analysis," the pseudonymous justcallmekoko explains. "It comes installed with a suite of offensive and defensive tools all running on an ESP32. I was inspired to create this tool by Spacehuhn's deauther project. I wanted to bring similar functionality to the ESP32 and introduce new Bluetooth capabilities to the tool."

Sujit Rayaprolu

2 min read

🛠️ Hardware Requirements

  • ESP32 Marauder Board: Ensure you have a compatible version (e.g., OG Marauder, Marauder v6, Marauder Mini).

  • GPS Module: Modules like the NEO-6M are commonly used.

  • Connecting Wires: For establishing connections between the GPS module and the ESP32 board.

  • Double-Sided Tape: To securely attach the GPS module to the Marauder board.(GitHub)

🔌 Wiring the GPS Module

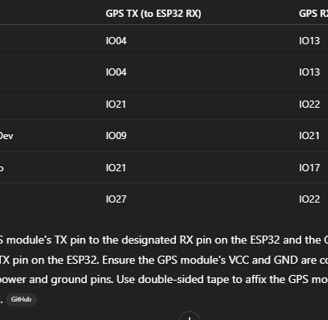

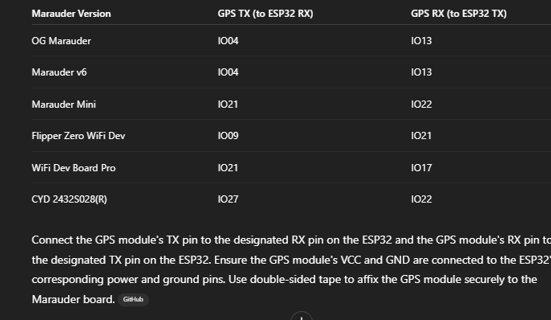

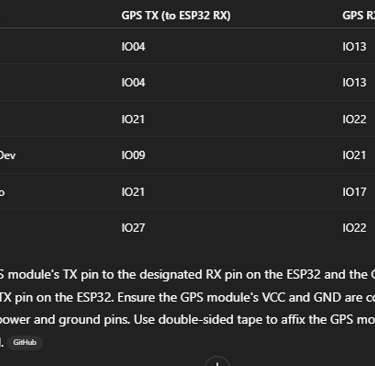

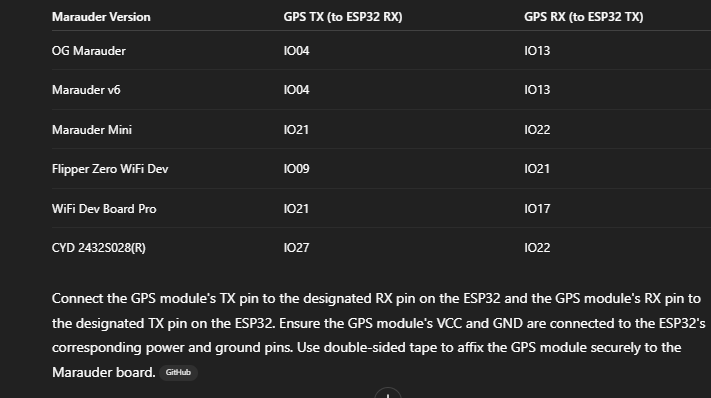

Connect the GPS module's TX pin to the designated RX pin on the ESP32 and the GPS module's RX pin to the designated TX pin on the ESP32. Ensure the GPS module's VCC and GND are connected to the ESP32's corresponding power and ground pins. Use double-sided tape to affix the GPS module securely to the Marauder board.GitHub

⚙️ Firmware Configuration

The ESP32 Marauder firmware includes built-in support for GPS modules. Once the GPS module is correctly connected:

  • GPS Menu: A "GPS Data" option will appear in the main menu.

  • Status Bar Icon: A satellite icon will be visible:

    • Red Satellite Icon: Indicates no GPS fix.

    • Green Satellite Icon: Indicates a valid GPS fix, with the number of satellites displayed next to the icon.(GitHub)

If these indicators are not present, verify the wiring connections and ensure the GPS module is compatible.

📡 Antenna Considerations

Most GPS modules come with an IPX socket, allowing for various antenna options:(GitHub)

  • Ceramic Antennas: Compact and suitable for enclosed setups.

  • SMA Antennas: Require a pigtail adapter and are ideal for external mounting, offering better signal reception.(GitHub)

Choose an antenna based on your enclosure and signal reception requirements.

🧪 Verifying GPS Functionality

After setting up:

  1. Power On: Turn on the ESP32 Marauder device.

  2. Access GPS Menu: Navigate to the "GPS Data" option in the main menu.

  3. Check Status Bar: Observe the satellite icon for GPS fix status.

  4. Wait for Fix: It may take a few minutes for the GPS module to acquire a fix, especially on first use.(GitHub, GitHub)

Ensure the device is in an open area with a clear view of the sky to facilitate satellite acquisition.

🧩 Additional Tips

  • Firmware Updates: Always use the latest firmware from the ESP32 Marauder GitHub repository to ensure compatibility and access to new features.

  • Module Compatibility: Not all GPS modules are compatible. Refer to the official GPS modification guide for recommended modules.

  • Enclosure Design: If designing a custom enclosure, ensure it accommodates the GPS module and antenna, allowing for optimal signal reception.(GitHub, GitHub)

By following these steps, you can successfully integrate a GPS module with your ESP32 Marauder, enhancing its functionality for applications that require geolocation data.

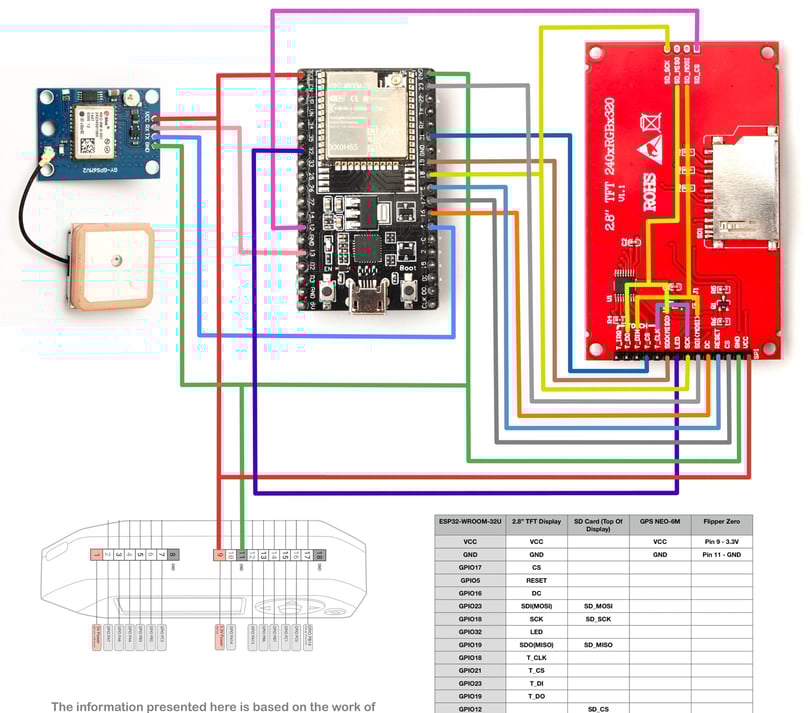

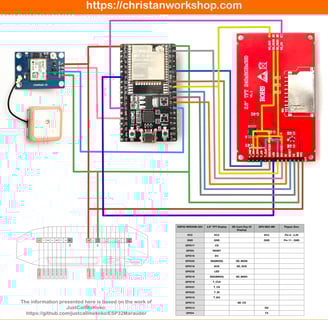

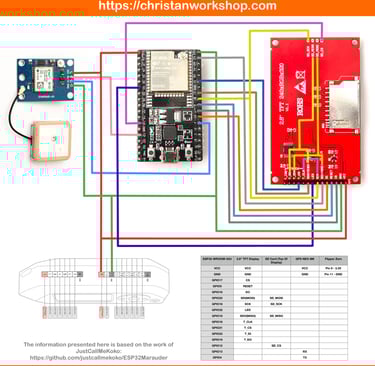

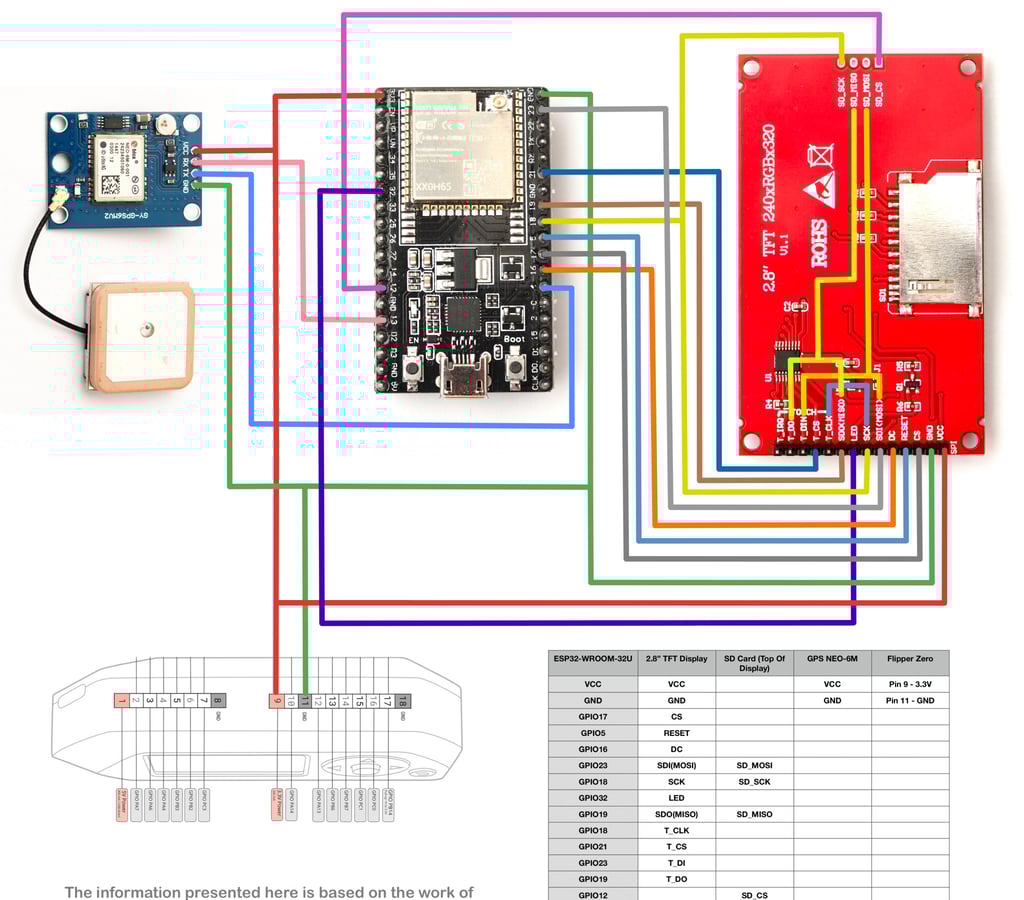

Circuit Diagram
